PLUG & PLAY MOBILE SLAUGHTERHOUSE
No Construction Required. Ready to Operate in 24 Hours. "TEKNOTES designs compact, containerized abattoirs that transform into fully hygienic, double-deck slaughter facilities upon arrival. Ideal for remote locations and emergency needs."
Plug, Play, Process. No Construction Required.
Plug, Play, Process. No Construction Required.
Engineering Excellence on Wheels

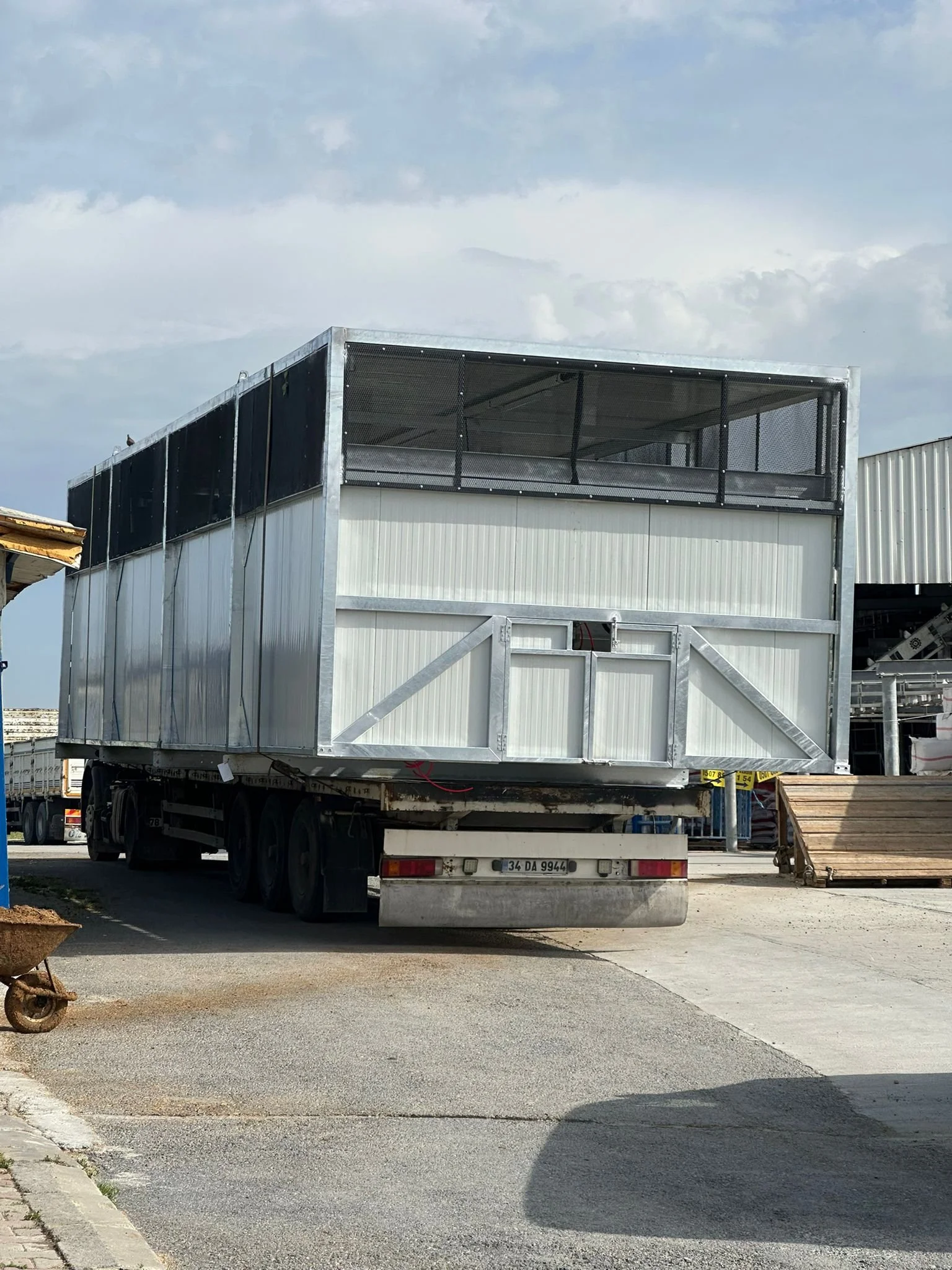

"Our Mobile Cattle Slaughterhouse is not just a container; it is a complete industrial facility compressed into a transportable module. Built on a heavy-duty hot-dip galvanized chassis , the unit features a unique hydraulic system that elevates the roof to a height of 5.4 meters, creating a spacious double-deck working environment essential for professional cattle processing.
From bleeding to carcass splitting, every stage is optimized for hygiene, complying with international food safety standards."
-
Standard Container Size (Easy Truck/Ship Transport)
-
100 Cattle / Day (Approx.)
-
100x100x3 mm Box Profile, Hot-Dip Galvanized
-
40mm Polyurethane Cold Room Panels
-
AISI 304 Stainless Steel Patterned Sheet (Anti-Slip)
-
2000 kg Capacity, Double Motor, Magnetic Brake
-
Integrated Sterilizers (82°C) & Drainage System
Why Choose Mobile Systems?

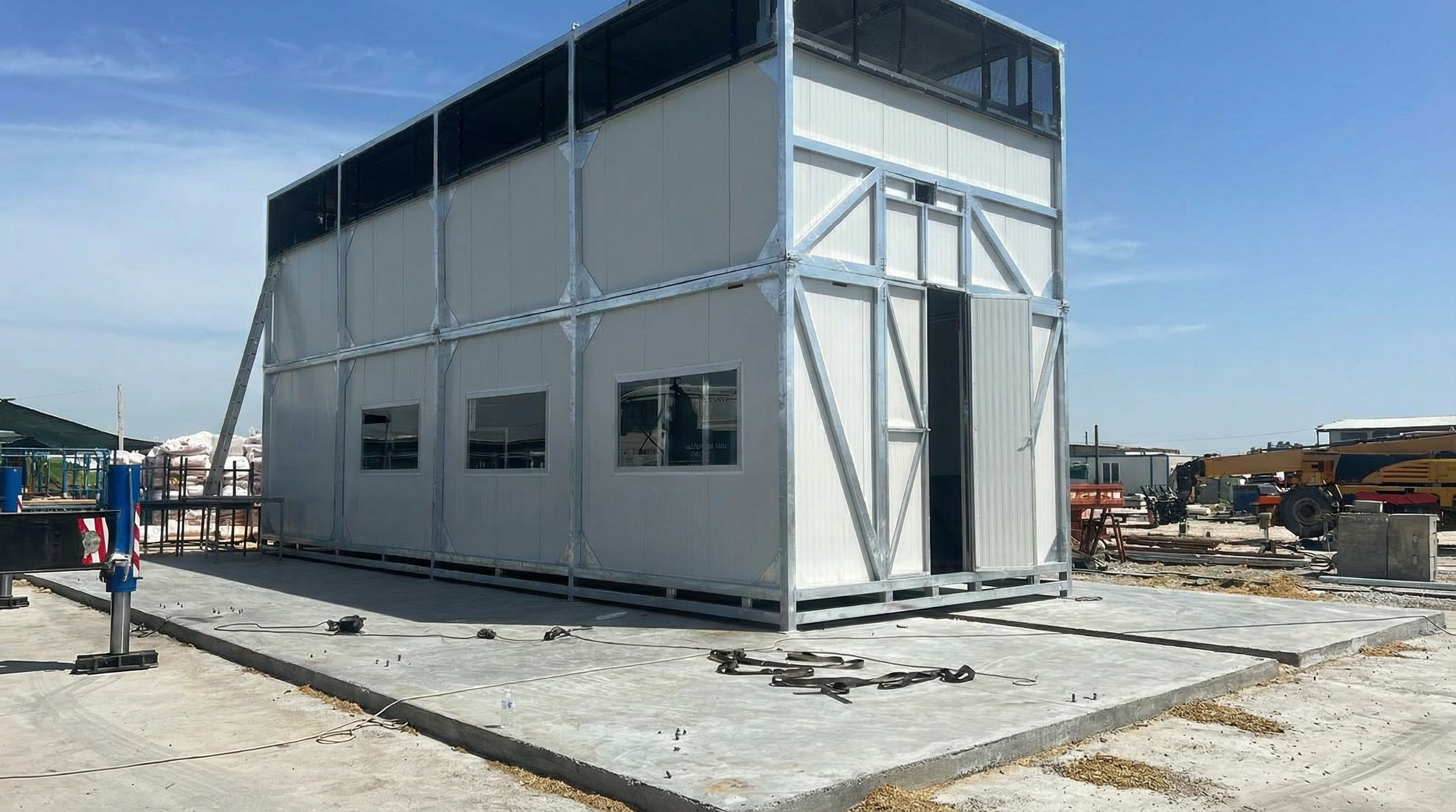

Hydraulic Expandable Roof: The specialized hydraulic system lifts the upper unit, providing a 5.4-meter ceiling height for ergonomic processing of large cattle.

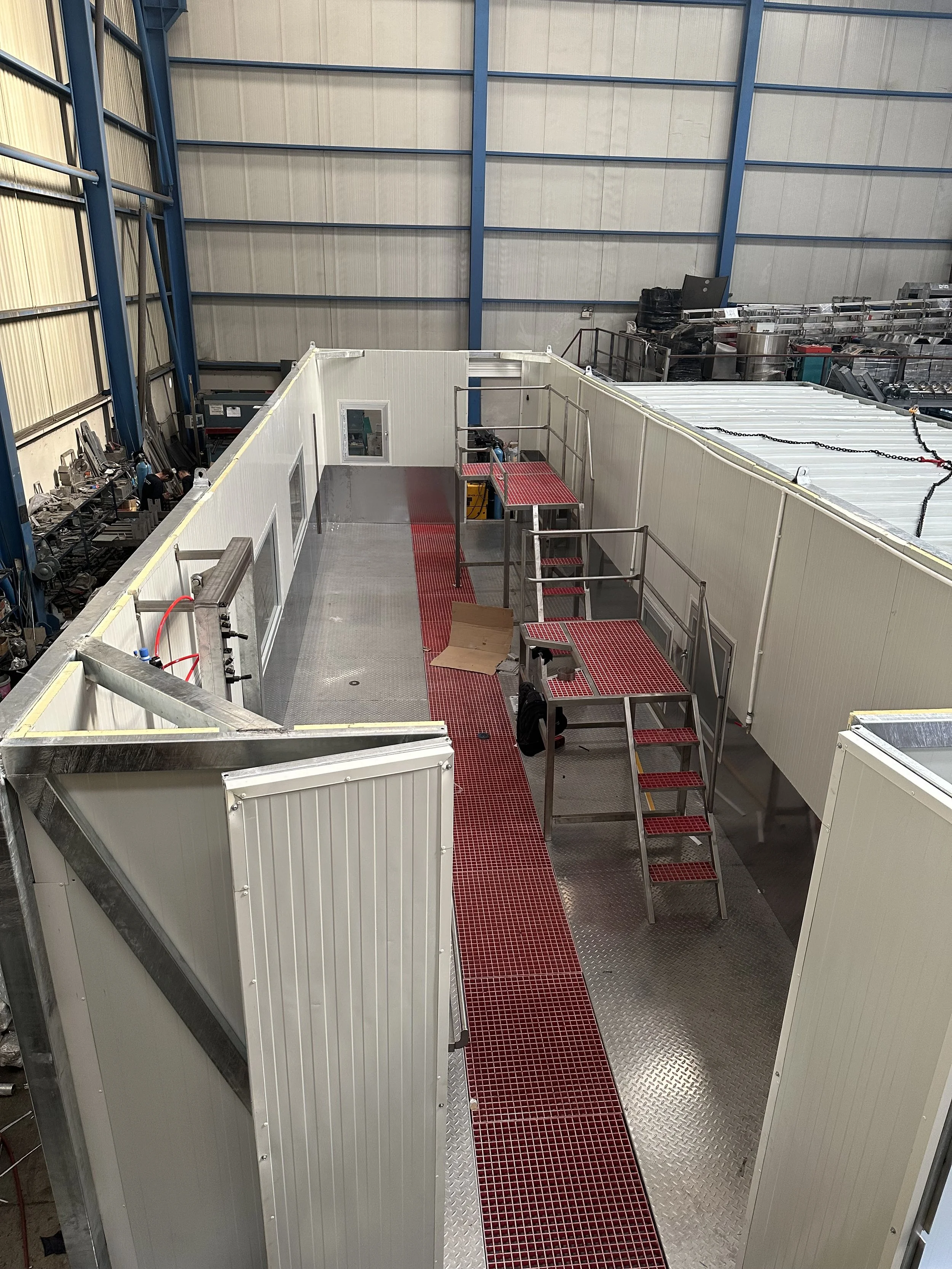

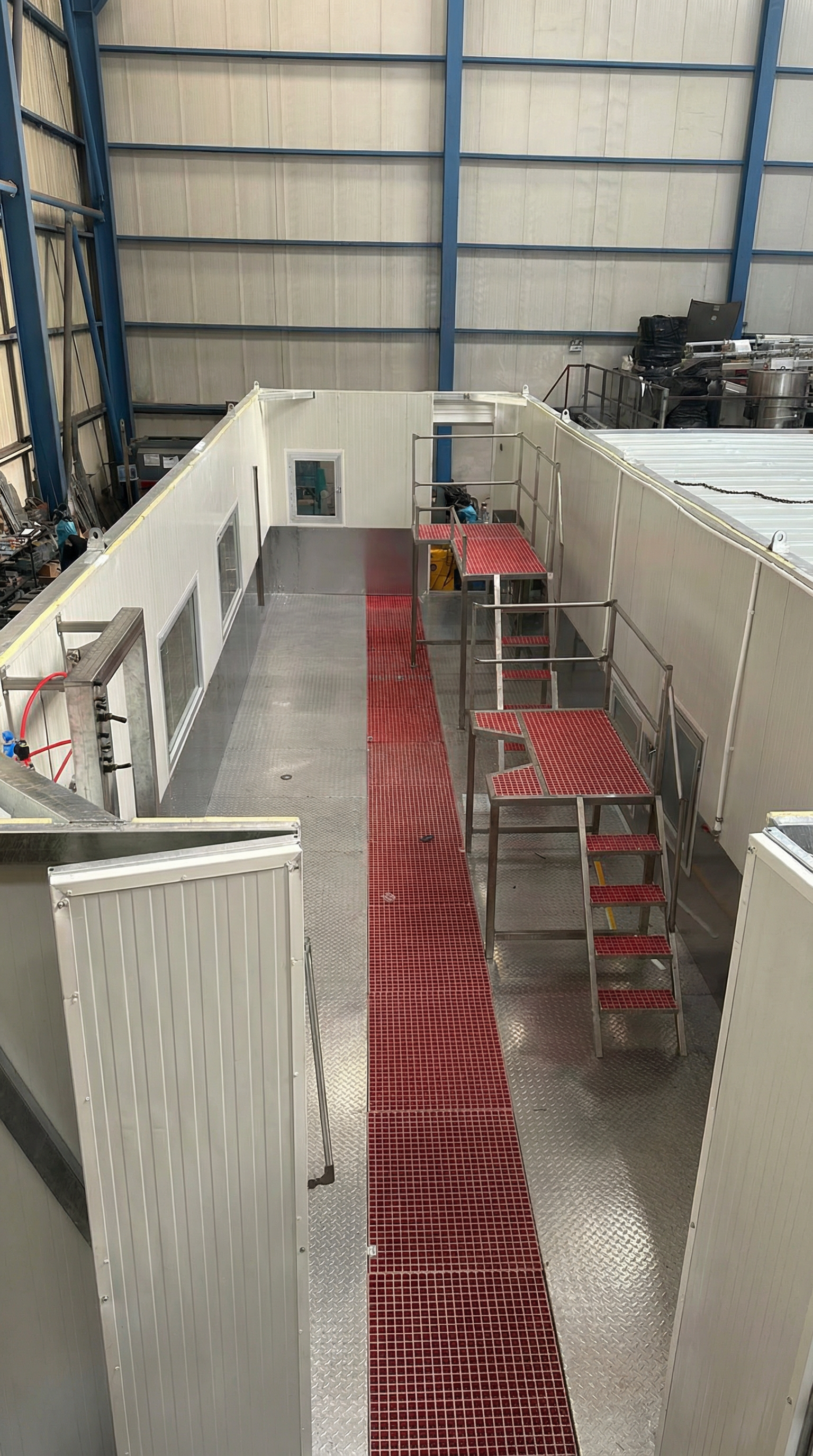

Maximum Hygiene: The interior is equipped with a 304 Grade Stainless Steel Floor with integrated drainage channels, ensuring easy cleaning and bacterial control.
Plug & Play Infrastructure: Delivered with complete electrical wiring, watertight lighting fixtures, water tank (1000L), and hydrophore system installed. Simply connect to the main power.
Durability: The entire steel main frame is Hot-Dip Galvanized, offering superior protection against corrosion and rust in harsh environments.
Included Equipment & Machinery
1. Lifting & Bleeding Area
Cattle Lifting Hoist (2000 kg, Speed: 22m/min). * Bleeding Monorail Line (NPI 160/180 Profiles). * Cattle Bleeding Hooks .
2. Processing & Transfer * Hydraulic Cattle Transfer Unit (2.2 kW Power). * Skin Dehider Machine:Mechanic drum system, 40 cattle/hour capacity. * Stainless Steel Twin Rail Processing Line. * Pneumatic Carcass Splitting Platform.
3. Offal & Hygiene * Tripe Extraction Platform & Stainless Chute. * Stainless Steel Offal Buggies (Trolleys). * Knee-Operated Washbasins & Knife Sterilizers (Thermostat controlled to 82°C). * 1000 Liter Water Tank & Booster Pump System.
